supermarket lcd display electronic price tag for Retail store

  • supermarket lcd display electronic price tag for Retail store
  • supermarket lcd display electronic price tag for Retail store
  • supermarket lcd display electronic price tag for Retail store
  • supermarket lcd display electronic price tag for Retail store
  • supermarket lcd display electronic price tag for Retail store
  • supermarket lcd display electronic price tag for Retail store
  • supermarket lcd display electronic price tag for Retail store
  • supermarket lcd display electronic price tag for Retail store
  • supermarket lcd display electronic price tag for Retail store
  • supermarket lcd display electronic price tag for Retail store
  • supermarket lcd display electronic price tag for Retail store
  • supermarket lcd display electronic price tag for Retail store
  • supermarket lcd display electronic price tag for Retail store
  • supermarket lcd display electronic price tag for Retail store
  • supermarket lcd display electronic price tag for Retail store
  • supermarket lcd display electronic price tag for Retail store
Model No.︰E-E21
Brand Name︰-
Country of Origin︰China
Unit Price︰US $ 12.5 / pc
Minimum Order︰200 pc
Share on:

 Total 26 Related Items
Prev34567Next

Product Description

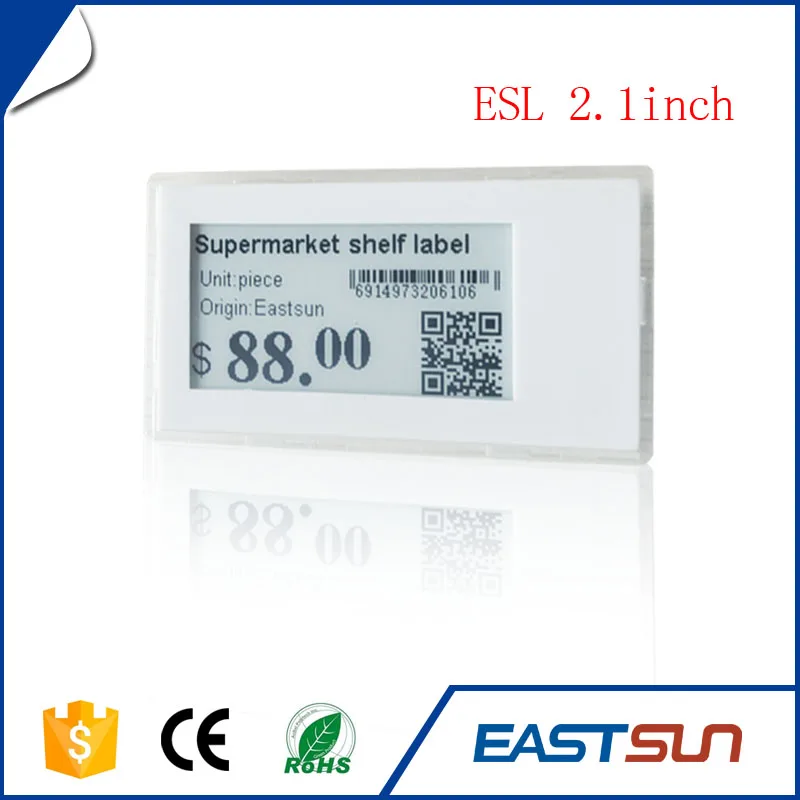

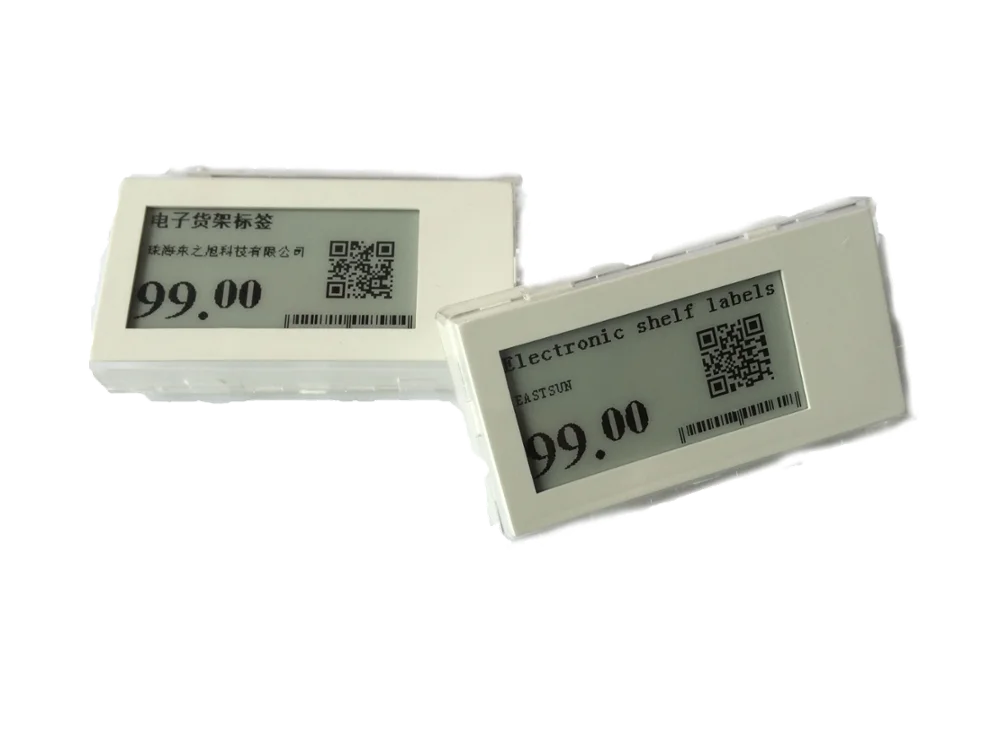

supermarket lcd display electronic price tag for Retail store

Product Description



Product model

E-E21

Effective display region

48*23mm

Resolution

212*104pixels

Physical dimension

75*40*16mm

Battery

CR2450*2

Weight

40g

Applicable scene

Shelves\books

Screen

Electronic ink screen,electronic paper screen

Display Format

Dot matrix pixel display

Viewing angle

175

Contrast

7:1

Operating frequency

433MHZ/868MHZ/915MHZ

Communication parameters

25m

Working life

More than 5 years

Low power consumption

Power protection,static wroking zero power

Display capabilities

Support for multiple languages,bar codes,2D codes

Operating temperature

0-50

Storage temperature

-20-70

Outdoor display capabilities

Sunlight Readabel

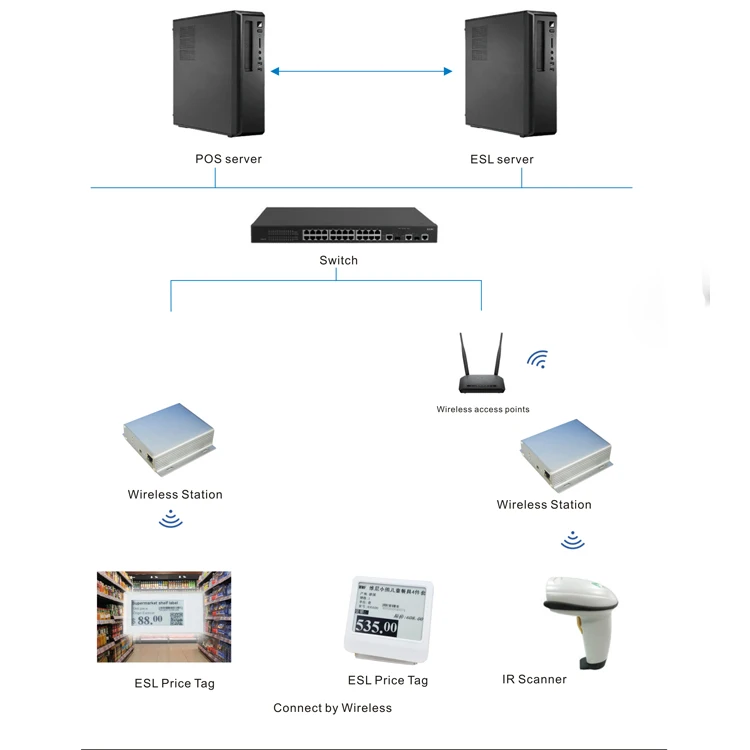

How it works



 esl .jpg

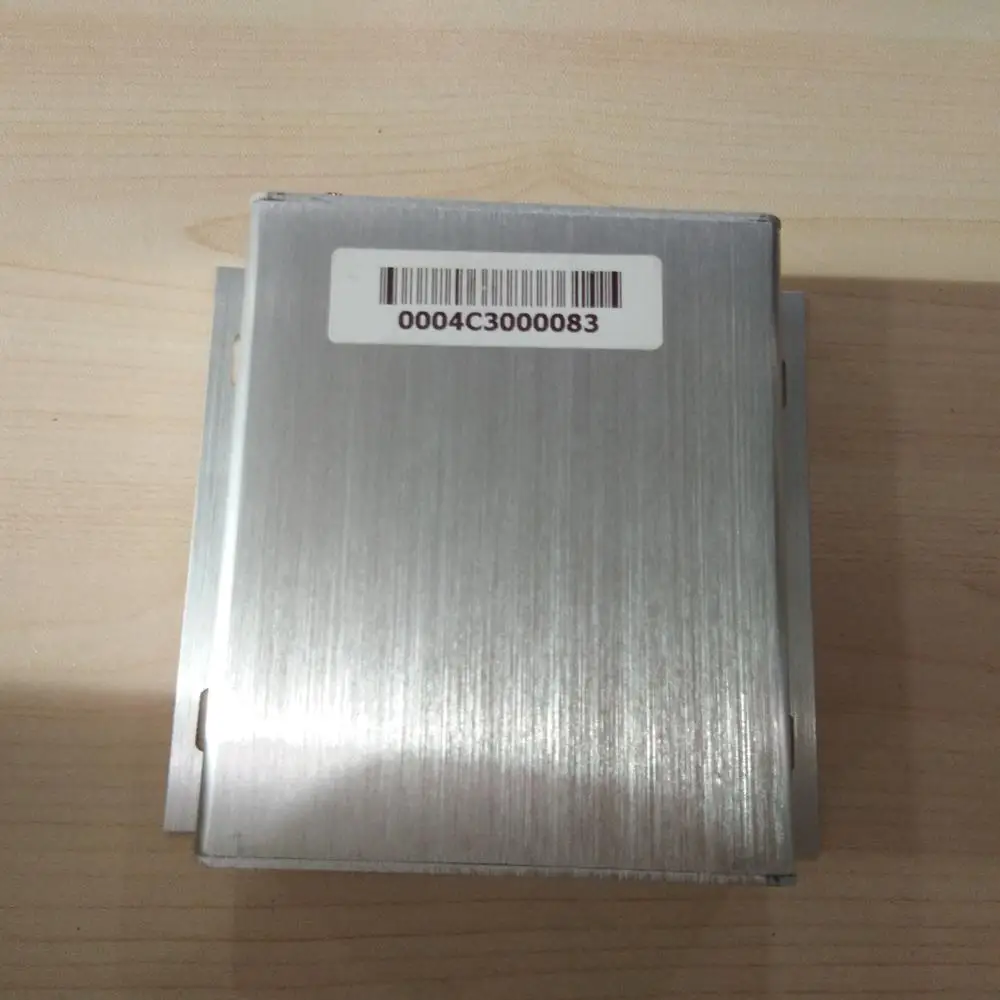

 wireless station QQ20170626173114.jpg

the entire system running transport hub, the use of independent communication protocols and network technology; hardware encryption and data compression technology to achieve rapid, low cost, efficient system operation



 IR Scanner  QQ20151022151803.png

The independent communication protocols and networking technologies, hardware encryption and data compression technology to achieve rapid, low cost, efficient system operation

 software .png

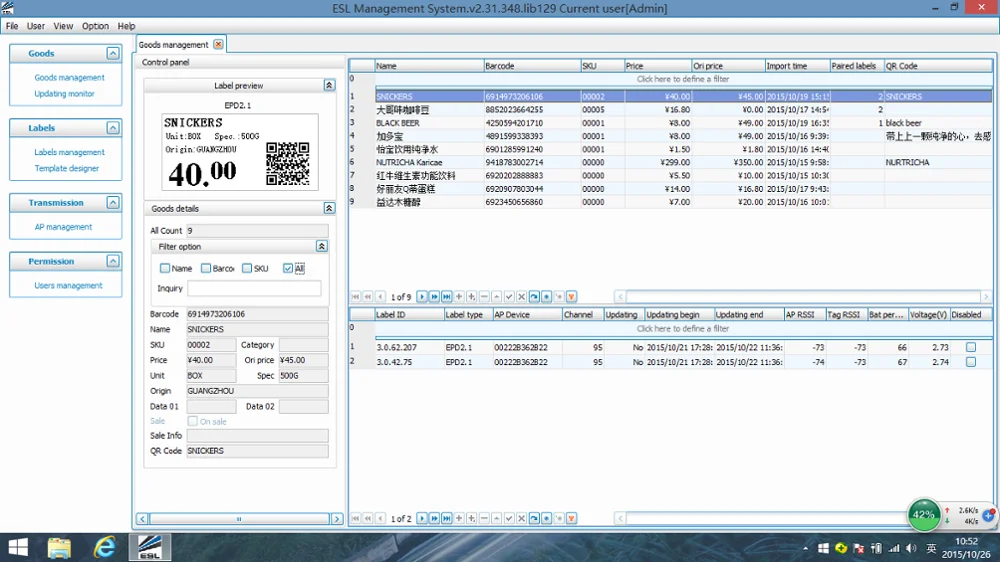

automated software management system

 ESL price tag 2.1.png

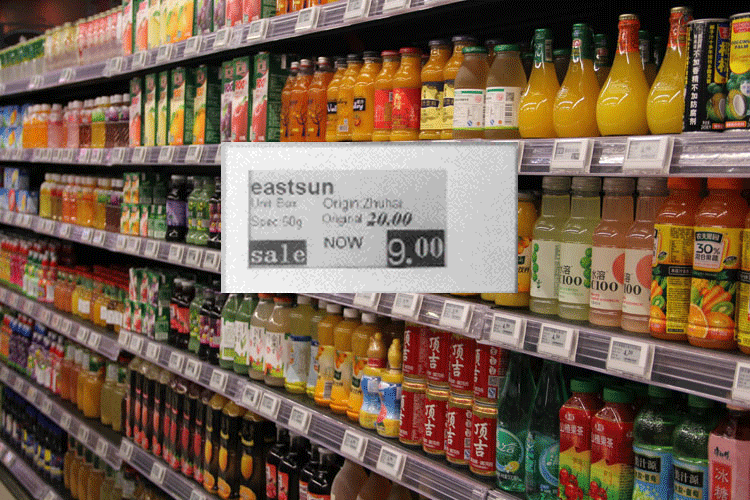

supermarket business according to actual condition selected different sizes of the electronic shelf label

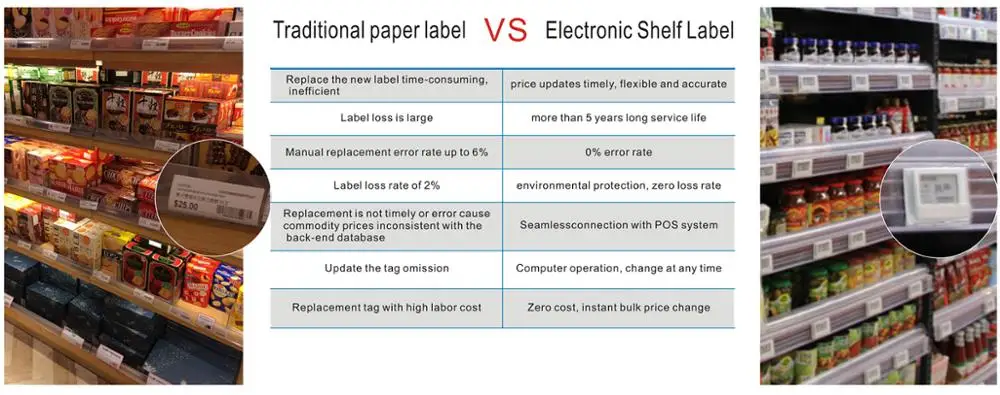

Product advantage

 esl .jpg





Installation method



.jpg ESL

Packaging & Shipping


Packing specifications: 44 * 31 * 23cm

Packing number: 280pieces/ 14.5kg

Packaging material: carton

Delivery

in stock :3-7workdays

no spot :60 workdays





Company Information

.jpg



  Related Products

 (Electronic Shelf Label)2.1.jpg  Low Price e-ink display panel Supermarket Digital Price Tag  Low Price e-ink display panel Supermarket Digital Price Tag

FAQ

1.Does  ESL uses E-ink display screen?

A:Yes

2.Which are the functions of the RF bar code scanner.

A:The RF bar code scanner is mainly for quickly binding ESL tag to products.The scanner recognize the bar code of the product and ESL price tag.

(Main function:Wake up, binding and disable ESL price tag )

3.Which are the information that we have to take into account in order to define the number of base stations to be installed in an store or Warehouse (distance between base stations, warehouse dimensions, number of tags, products)?

A: One base station can control <2000pieces of ESL price tag in R=25M,1000 square meters area via 433mhz frequency.

The number of base station depends on the layout, tag density and scale of the area where you want to install the tags. it is better that you give us your store plan , we will calculate for you.

4.How to integrate the POS system to ESL system?

A:We have done a data interface (a CSV file format is used to store the name of commodity, price data, bar code, origin and other documents).The information is updated in the POS system then the ESL server will sync the update and transmit updated information to the tags automatically.

5.What language does your ESL software support?

A:ESL price tag no language restrictions,ESL software support Chinese and English,other Languages can be developed by customer’s request.



Contact information

Summer Hu
Email:easrfid@zheastsun.com.cn

Skype:summer.hhj

Whatsapp:+85-13652719064


Any question about the products, pls feel free to contact me.
Sincerely look forward to cooperating with you !

Price Terms︰FOB zhuhai
Payment Terms︰L/CD/AD/PT/TWestern UnionMoneyGram/paypal
Packing︰carton
Lead Time︰5-15workdays
